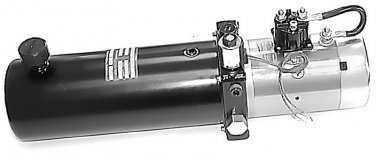

Gravity Down 1 Gallon Power Pack for Maxon Liftgates
Power Up
Gravity Down
12" Long
1 Gallon Reservoir with Breather(APP3145)
Pressure set to 2500 psi - Adjustable
Prestolite Solenoid
2 Wires for Drain Solenoid
Extra port for Return Line
Monarch Brand
9 Month Warranty
This Monarch pump replaces Maxon 250100
Replaces part#
Maxon 250100
Cross Reference:
Maxon 250100
This power Unit is Power Up, Gravity Down
20 ½” Long x 5” Wide x 7 ¼” Tall
It features a 1 gallon cylindrical steel tank, adjustable PSI up to 3000 PSI (set at 2500 psi) 1800 PSI set up, 2200 PSI working, 2500 relief, there is also an extra port for a return line. We start with a base SPX Stone unit and begin to add all the necessary goodies to make this a perfect drop in unit for several applications (not just liftgates!).
We also offer the APP0253 & APP0245 for a few different reservoir options to assist in fluid flow.
